Eagle K90

DUALSTEER® | RS

Super low professional tractor with differentiated wheels, 75 hp and 3800 cc. Short wheelbase and ideal weight/power ratio.

The Eagle K90 RS is a compact tractor equipped with a vigorous drive torque ideal for working in greenhouses, orchards and vineyards, even on slopes.

The new, low profile, pressurised and Category 4 approved “Compact Pro” cab* ensures full operator protection.

^*optional

Transmission 16+16

POWER 75 hp

Driving position monodirectional

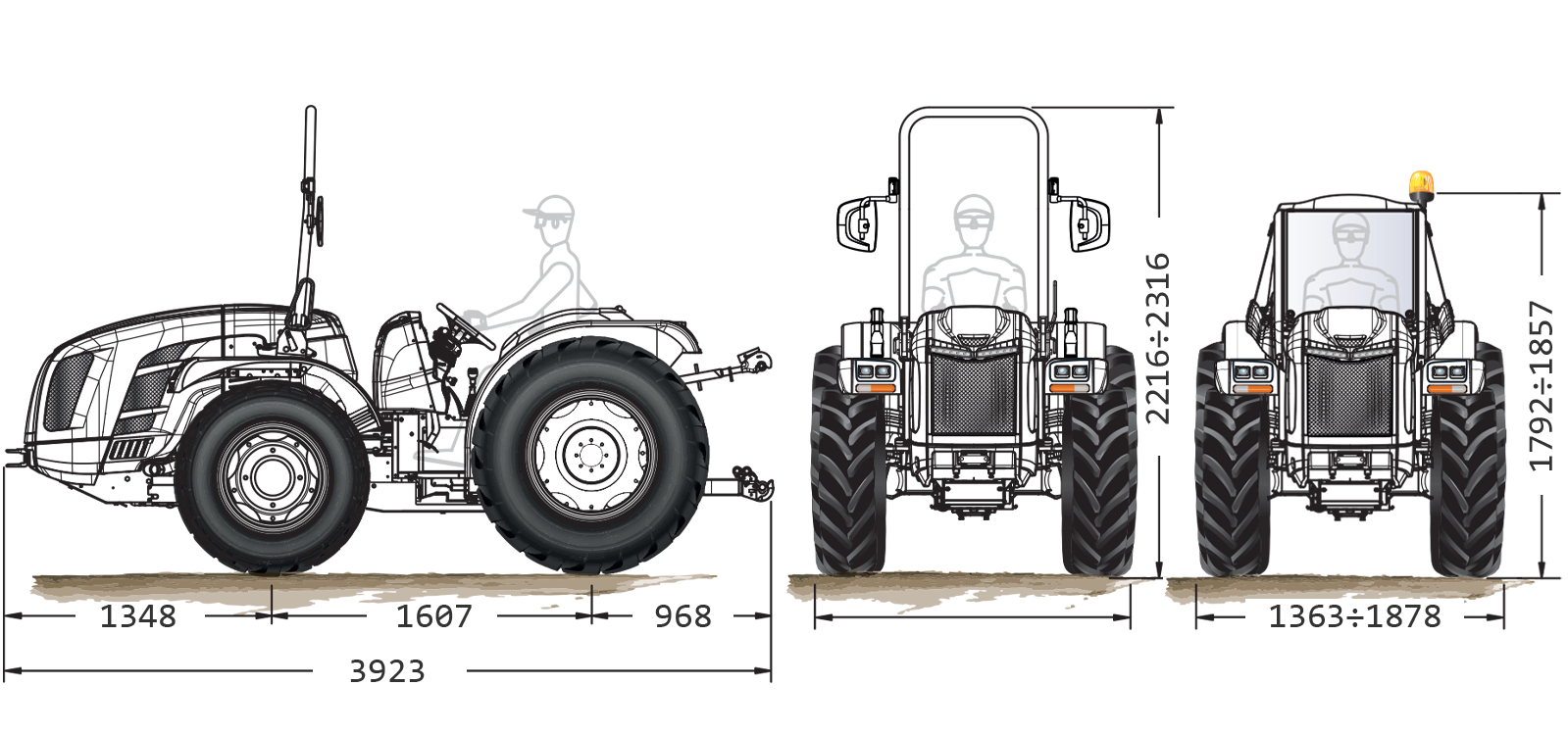

MIN. WIDTH 1363 mm

SALES NETWORK

SDT | Steering wheels

The oversized rear wheels, available in 20 or 24”, ensure high lifting capacity (2700 kg) and traction on any type of ground.

The OS-Frame and the steering acting on the front wheels ensure stability and adherence in any operating condition, even on slopes.

The standard manoeuvring brakes further reduce the turning radius for more agility between the rows.

The Eagle K90 range is also available in the Dualsteer® version.

Technical Data

Eagle K90 - RS

	Kubota V3800-CR-T-EW03 – Stage V
Power (kW/HP)	54.6 / 75
Nominal speed (rpm)	2400
Number of cylinders	4
Displacement (cm3)	3769
Aspiration	Turbo
Maximum torque (Nm/rpm)	305.4 / 1500

Type	Differentiated wheels and short wheelbase with driving position with platform suspended on silent block
Chassis	Steering wheels
Driving position	Monodirectional
Transmission	16 + 16
Synchronized reverser	Yes
Electro-hydraulic power shuttle EasyDrive®	Optional
Drive	4WD with front-wheel drive disengagement
Hydraulic system	Dual circuit with independent pumps
Heat exchanger	Yes
Joystick	Optional. Proportional electronic control of lifts and control valves, potentiometer for adjusting the hydraulic flow rate
Rear lifting capacity (kg)	2700 (at the ball joint)
Front lift	Optional, complete with front bumper and four front hydraulic outlets
PTO rotation speed (rpm)	540 / 540E (optional: 540 / 1000)
PTO engagement control	Electro-hydraulic
Service brakes	Multi disc in oil bath with hydrostatic control, acting on four wheels. Independent manoeuvring brakes acting on rear wheels
Cabin	Optional: 'Compact Pro' low-profile, pressurised and homologated Cat. 4, with heating and air-conditioning system

Tyres: 420/65 R24 – 320/70 R24
Engine speed: 2400 rpm

Download the technical sheet

Clean power.

The K90 range is equipped with a 3.8 litre-4-cylinder Kubota engine which develops 75 hp and a vigorous torque of 305.4 Nm @1500 rpm.

The latest-generation Common Rail engine ensures:

a precise injection control,
a more efficient combustion,
improved performance,
less fuel consumption.

Transmission.

OS-Frame

Engine and clutch are connected by a single transmission shaft which moves both the gearbox and the PTO, ensuring compact dimensions and greater steering angles.

A joint placed in the central part of the tractor allows the fore-carriage to oscillate up to 15° with respect to the rear carriage, stabilising the set-up on slopes or uneven ground, constantly ensuring maximum drive of all four wheels.

Synchro gearbox

The synchronised gearbox consists of 4 ranges and 4 speeds for a total of 16 gears both in forward motion and in reverse, with synchronised reverser.

The logical speed sequence (from 700 meters per hour to 40 km/h) makes it possible to always select the right gear for the intended use, allowing fuel savings, less stress on the mechanical components and a better operating quality.

Long-Life clutch

The electronically-controlled multidisc in oil bath is much softer and more efficient than traditional dry clutches, always ensuring precise control of the tractor by the operator.

Using this type of advanced hydraulic clutch, inserted inside the transmission, results in a series of concrete advantages: longer life, no maintenance and maximum manoeuvrability thanks to the more compact dimensions of the tractor.

EasyDrive® electro-hydraulic reverser.

EasyDrive® electro-hydraulic reverser

Total control.

Optionally, the transmission can be equipped with the exclusive EasyDrive® electro-hydraulic reverser (standard on AI-Tractor).

The practical lever, on the left of the steering wheel, allows the operator to reverse the driving direction without using the clutch pedal and without lifting the hands from the steering wheel, while always keeping the vehicle control at all times.

Find out more

Maximum protection!

'Compact Pro' cab

Low profile and certification Cat. 4

The low chassis with height off the ground of only 176 cm makes use under the foliage, in pergola vineyards, canopy plantations and greenhouses extremely easy.

Pressurised and homologated in Cat. 4, isolates the operator from harmful inhalations during treatments with phytosanitary agents, making the work environment healthy and safe.

Find out more

Functional design.

The Eagle K90 range features an aggressive design yet elegant and functional, characterised by a muscular line which nevertheless provides the driver optimal visibility.

In addition to the four LED optical units on the front bumpers, two LED headlights above the bonnet grille increase the lit area to facilitate work at night or in poorly lit environments.

Additional options.

Front bumper

Robust steel accessory that combines style and functionality by protecting the bonnet and radiator grille from impact.

In the configuration with front lift, it integrates the linkage of third point tie rod.

Front ballasts

Ballast weighing a total of 150 kg, designed for mounting on both sides of the bonnet so as not to increase the size of the tractor.

Not compatible with the front lift.

Front lift

Front lift equipped with front protection and four hydraulic outlets, essential for combined equipment applications.

Lifting capacity: 800 kg

Not compatible with the front ballasts.
