International range | Action series

720 Action

Reversible and multifunctional two-wheel tractor.



720 Action is a light and compact two-wheel tractor ideal for easily and safely working on small private plots or in tight spaces.

Creation of gardens, cutting of grass or scrub, removal of snow are only some of the needs that even the inexperienced operator will be able to satisfy.

NO. OF SPEEDS 3+2
Differential no
MAX. POWER 9.5 hp
MAX. TILLING WIDTH 66 cm

Technical Data

Honda GX200 Honda GX270 Briggs&Stratton XR1450 Kohler KD350
Fuel Gasoline Gasoline Gasoline Diesel
Power (kW/HP) 4.1 / 5.5 6.3 / 8.6 7 / 9.5 5.5 / 7.5
Starter Recoil Recoil Recoil Recoil
Transmission Mechanical
No. of speeds (FWD/REV) 3 + 2 (with rear attachment) | 2 + 2 (with front attachment)
Quick reverser of the forwarding direction Mechanical
Clutch Self-ventilating dry clutch, with manual control
Differential No
Power take-off Independent from gearbox at 990 rpm with engagement in oil bath
Working brakes No
Parking brake No
Implement quick hitch In option
Handlebar Mounted on silent-blocks, adjustable in height, sideways and reversible
With wheels (A) Width min/max * (B) Lenght *
4.00-8 435 mm 1800 mm
4.0-10 466 / 538 mm 1800 mm
6.5/80-12 and wheel spacers 680 / 777 mm 1800 mm
steel cage wheels Ø cm 43 435 mm 1800 mm
Dimensioni motocoltivatori

* without attachment

With engine and wheels Weight *
GX200 engine, wheels 4.00-8 67 kg
GX270 engine, wheels 4.0-10 84 kg
XR1450 engine, wheels 4.0-10 85 kg
KD350 engine, wheels 4.0-10 94 kg

* without attachment

I FWD II FWD III FWD I REV II REV
with rear attachment 1,1 km/h 2,6 km/h 12 km/h 1,2 km/h 2,7 km/h
with front attachment 1,2 km/h 2,7 km/h 1,1 km/h 2,6 km/h

Graph of the speeds in km/h (forward and reverse gears) with 4.0-10 tyres.

Driving position.

  • Handlebar mounted on silent block to reduce vibrations to the advantage of operating comfort.
  • Height adjustable driving handlebars to adapt to the physical structure of the user, and adjustable sideways to manoeuvre the two-wheel tractor without stepping on the recently worked ground.

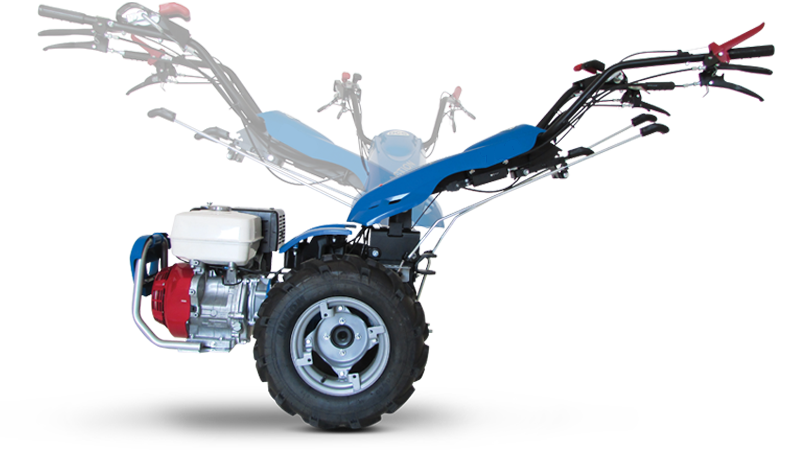

  • 180° reversibility of the driving handlebars for use the two-wheel tractor with both rear and front attachments.
  • Ergonomic controls and rationally positioned for quick familiarisation with the machine.
  • Quick reverser to quickly change the direction of the machine at any speed.
Action-reversibilita

Safety devices.

  • Motor-stop combined with clutch.
  • Reverse speed contrast to avoid the simultaneous engagement of reverse speed and rotary hoe.

Transmission.

The power transmission from the engine to the wheels and to the pto is through a solid transmission in oil bath, which provides the best compromise with benefits, reliability and working life.

The conical self-ventilating dry clutch allows simple maintenance and low operating costs.

Action-transmission

Three-pronged power take-off.

Three-pronged power take-off

Exclusive patented system.

The PTO, which is independent of the gearbox with oil-bath engagement, features the unique and patented three-pronged engagement system to transfer power from the engine to the attachment.

Find out more
Innesto-PTO-1

Why choose a BCS Two wheel tractor?

Safety

  • Motor Stop combined with the clutch.
  • Device to prevent the simultaneous engagement of rotary hoe and reverse speed.

Manoeuvrability

  • Solid and compact structure to make the two-wheel tractors extremely light and maneuverable on all types of grounds.
  • Optimal balancing of the machine with both front and rear attachments.

Comfort

  • Adjustable handlebar in 7 different positions – to fit all types of operator – and sideways to avoid treading the soil worked or to cut on slope.
  • Handlebar mounted on silent-blocks to dampen vibrations and allow the use of the two-wheel tractors for several hours without straining the operator.

Ergonomics

  • Easy to locate and operate levers and controls with simple and effortless movements.
  • Intuitive and well-visible pictograms illustrate the function of all controls to the operator.

Experience

  • BCS is a leading Company in the sector of agricultural and greens maintenance machines. Born in 1943, it is recognized internationally for the high quality of its production.
