Action series

740 Action

Reversible and multifunctional two-wheel tractor.

740 Action is a professional two-wheel tractor designed for intensive use.

Ideal for the creation of gardens, the maintenance of public and private gardens, snow removal, mowing and inter-row cleaning of vineyards, orchards or large uncultivated areas.

NO. OF SPEEDS 4+3

Differential yes

MAX. POWER 11.7 hp

MAX. TILLING WIDTH 80 cm

Download brochure

SALES NETWORK

Focus.

The presence of the differential increases manoeuvrability and, combined with the brakes, makes the two-wheel tractor agile even when moving on slopes.

Drum brakes make it possible to independently brake one wheel at a time to improve steering.

Technical Data

	Honda GX390	Briggs&Stratton XR2100	Yanmar L100V	Kohler KD440
Fuel	Gasoline	Gasoline	Diesel	Diesel
Power (kW/HP)	8.7 / 11.7	8.4 / 11.5	6.8 / 9.1	8 / 10.5
Starter	Recoil or Electric	Recoil	Recoil or Electric	Recoil or Electric

Transmission	Mechanical
No. of speeds (FWD/REV)	4 + 3 (with rear attachment) \| 3 + 3 (with front attachment)
Quick reverser of the forwarding direction	Mechanical
Clutch	Self-ventilating dry clutch, with manual control
Differential	With lock
Power take-off	Independent from gearbox at 990 rpm with engagement in oil bath
Working brakes	Independent on the two wheels
Parking brake	No
Implement quick hitch	In option
Handlebar	Mounted on silent-blocks, adjustable in height, sideways and reversible

With wheels	(A) Width min/max *	(B) Lenght *
5.0-10	503 / 575 mm	2000 mm
6.5/80-12	668 / 790 mm	2000 mm
steel cage wheels Ø cm 49	450 mm	2000 mm

* without attachment

With engine and wheels	Weight *
GX390 engine, wheels 5.0-10	104 kg
GX390 AE engine, wheels 5.0-10	104 kg
XR2100 engine, wheels 5.0-10	108 kg
L100V engine, wheels 5.0-10	122 kg
L100V AE engine, wheels 5.0-10	130 kg
KD440 engine, wheels 5.0-10	120 kg
KD440 AE engine, wheels 5.0-10	126 kg

* without attachment

	I FWD	II FWD	III FWD	IV FWD	I REV	II REV	III REV
with rear attachment	1,2 km/h	2,9 km/h	4,3 km/h	13,4 km/h	1,3 km/h	3 km/h	4,5 km/h
with front attachment	1,3 km/h	3 km/h	4,5 km/h		1,2 km/h	2,9 km/h	4,3 km/h

Graph of the speeds in km/h (forward and reverse gears) with 5.0-10 tyres.

Download the technical sheet

Driving position.

Handlebar mounted on silent block to reduce vibrations to the advantage of operating comfort.
Height adjustable driving handlebars to adapt to the physical structure of the user, and adjustable sideways to manoeuvre the two-wheel tractor without stepping on the recently worked ground.

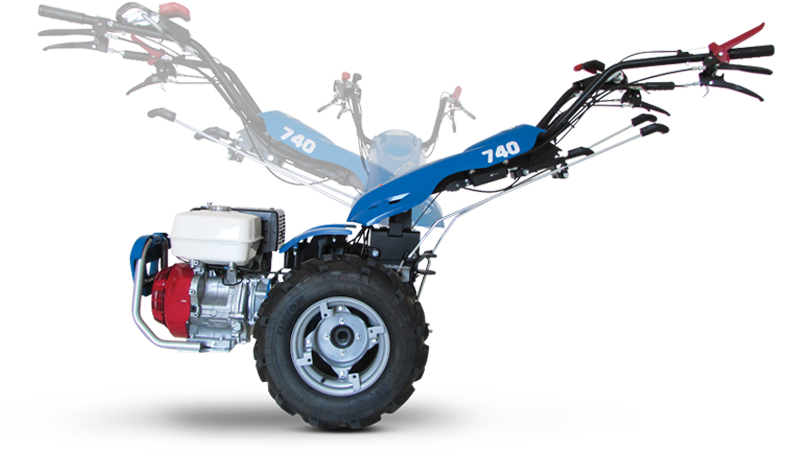

180° reversibility of the driving handlebars for use the two-wheel tractor with both rear and front attachments.
Ergonomic controls and rationally positioned for quick familiarisation with the machine.
Quick reverser to quickly change the direction of the machine at any speed.

Safety devices.

Motor-stop combined with clutch.
Reverse speed contrast to avoid the simultaneous engagement of reverse speed and rotary hoe.
Independent brakes on the two wheels.

Transmission.

The power transmission from the engine to the wheels and to the pto is through a solid transmission in oil bath, which provides the best compromise with benefits, reliability and working life.

The conical self-ventilating dry clutch allows simple maintenance and low operating costs.

Why choose a BCS Two wheel tractor?

Safety

Motor Stop combined with the clutch.
Device to prevent the simultaneous engagement of rotary hoe and reverse speed.

Manoeuvrability

Solid and compact structure to make the two-wheel tractors extremely light and maneuverable on all types of grounds.
Optimal balancing of the machine with both front and rear attachments.

Comfort

Adjustable handlebar in 7 different positions – to fit all types of operator – and sideways to avoid treading the soil worked or to cut on slope.
Handlebar mounted on silent-blocks to dampen vibrations and allow the use of the two-wheel tractors for several hours without straining the operator.

Ergonomics

Easy to locate and operate levers and controls with simple and effortless movements.
Intuitive and well-visible pictograms illustrate the function of all controls to the operator.

Experience

BCS is a leading Company in the sector of agricultural and greens maintenance machines. Born in 1943, it is recognized internationally for the high quality of its production.
