706 PowerSafe®
Reversible two-wheel tractor with mechanical transmission and PowerSafe® hydraulic clutch.

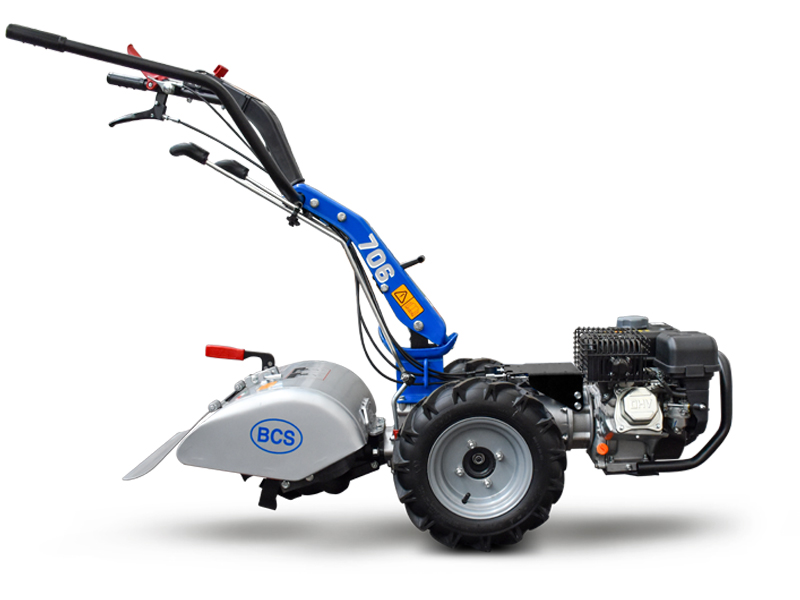

706 PowerSafe® is a small two-wheel tractor with extremely low weight and dimensions, ideal for easily working on small private orchards and gardens, in tight spaces or in the greenhouses.
Tillage, grass cutting or snow removal are just some of the requirements that even the hobby-farmer can safely meet.
Focus
Available as an option, the aluminium guard kit mounted on the wheels’ axle prevents the grass from wrapping itself around the wheel hubs during the use of the two-wheel tractor 706 PowerSafe® with cutter bar.
Technical Data
| Transmission | Mechanical |
|---|---|
| No. of speeds (FWD/REV) | 1 + 1 |
| Quick reverser of the forwarding direction | No |
| Clutch | PowerSafe®, hydraulically operated with multiple discs in oil bath |
| Differential | No |
| PTOPower take-off | Independent from gearbox at 990 rpm with engagement in oil bath |
| Working brakes | No |
| Parking brake | No |
| Implement quick hitch | In option |
| Handlebar | Mounted on silent-blocks, adjustable in height, sideways and reversible |
| Safety devices | Complying with the applicable regulations |
| With wheels | (A) Width min/max * |
|---|---|
| 3.50-8 | 410 mm |
| steel cage wheels Ø cm 43 | 435 mm |
Dimensions in millimeters (mm)
* nominal dimension and without attachment
| With engine and wheels | Weight * |
|---|---|
| GK210 engine, wheels 3.50-8 | 64 kg |
* without attachment
| Graph of the speeds in km/h (forward and reverse gear) with 3.50-8 wheels |
|---|
| Two-wheel tractor version (with rear attachments) |
| Motor mower version (with front attachments) |
With 4.0-10 wheels, the speeds increase to:
1.14 km/h forward and 2.90 km/h in reverse (two-wheel tractor version)
2.90 km/h forward and 1.14 km/h in reverse (motor mower version)
PowerSafe® hydraulic clutch.
PowerSafe® hydraulic clutch
Unique and inimitable.
The exclusive PowerSafe® clutch with hydraulically-operated multiple steel disc in oil bath, not only guarantees maximum reliability but also greater operational comfort, safety and high performance in any conditions of use.
Driving position.
Safety.
- Forward motion of the two-wheel tractor and activation of the PTO is only permitted with the red safety lever actuated.
- When working with rear implements, the PTO automatically disengages when reverse gear is engaged.
When the operator releases the handlebar, the PowerSafe® hydraulic clutch ensures the immediate stop of both the PTO and wheel traction, without shutting off the engine.
Work can be resumed safely thanks to the dual-action system, which requires pulling the clutch lever before lowering the red safety lever.
Three-pronged power take-off.
Three-pronged power take-off
Exclusive patented system.
The PTO, which is independent of the gearbox with oil-bath engagement, features the unique and patented three-pronged engagement system to transfer power from the engine to the attachment.
