Fighter K90 RS

Super low-profile tractor with differentiated wheels and short wheelbase. 75 hp and 3800 cc engine.

Fighter K90 RS was developed to satisfy customers looking for a solid and efficient machine, with basic and essential set-up.

Maximum operating comfort is guaranteed by the generous driving platform with easy access on-board.

Compact, agile and with low centre of gravity, Fighter K90 RS is the ideal tractor for working in orchards and vineyards, also on slopes, olive groves, greenhouses, canopy plantations or characterised by low foliage.

The new cab*, the lowest in its category with an ultra-low profile and height off the ground of only 170 cm is available in two versions: “Compact Pro” pressurised and Category 4 approved or “Compact Clima” with air conditioning and heating system.

^*optional

Transmission 16+16

POWER 75 hp

Driving position monodirectional

SALES NETWORK

RS | Steering wheels

The oversized rear wheels, available in 20 or 24”, ensure high lifting capacity (2700 kg) and traction on any type of ground.

The OS-Frame and the steering acting on the front wheels ensure stability and adherence in any operating condition, even on slopes.

The standard manoeuvring brakes further reduce the turning radius for more agility between the rows.

Technical Data

	Kubota V3800-CR-T-EW03 – Stage V
Power (kW/HP)	54.6 / 75
Nominal speed (rpm)	2400
Number of cylinders	4
Displacement (cm3)	3769
Aspiration	Turbo
Maximum torque (Nm/rpm)	305.4 / 1500

Type	Differentiated wheels and short wheelbase with footstep driving position
Chassis	Steering wheels
Driving position	Monodirectional
Transmission	16 + 16
Synchronized reverser	Yes
Electro-hydraulic power shuttle EasyDrive®	n/a
Drive	4WD with front-wheel drive disengagement
Hydraulic system	Dual circuit with independent pumps
Heat exchanger	Yes
Joystick	n/a
Rear lifting capacity (kg)	2700 (at the ball joint)
Front lift	n/a
PTO rotation speed (rpm)	540 / 540E (optional: 540 / 1000)
PTO engagement control	Electro-hydraulic positioned on the right mudguard
Service brakes	Multi disc in oil bath, acting on rear wheels. Independent manoeuvring brakes acting on rear wheels
Cabin	Optional. Ultra-low profile (minimum height 170 cm). Available versions: 'Compact Clima' with heating and air-conditioning system or 'Compact Pro' pressurised and Cat. 4 approved

n/a = not available

Running order weight (roll-bar):

2450 kg

Dimensions in millimeters (mm)

Running order weight (cabin):

2570 kg

Dimensions in millimeters (mm)

Tyres: 380/70 R20 – 320/70 R24 – 280/85 R24
Engine speed: 2300 rpm

Download the technical sheet

Clean power.

Fighter K90 is equipped with a 3.8 litre-4-cylinder Turbo Kubota engine which develops 75 hp and a vigorous torque of 305.4 Nm @1500 rpm.

The latest-generation Common Rail engine ensures:

precise injection control,
more efficient combustion,
improved performance,
less fuel consumption.

The engine revs are electronically adjusted quickly by a manual lever and a button that stores and retrieves the set speed.

Transmission.

Engine and clutch are connected by a single transmission shaft which moves both the gearbox and the PTO, ensuring compact dimensions and greater steering angles.

A joint placed in the central part of the tractor allows the fore-carriage to oscillate up to 15° with respect to the rear carriage, stabilising the set-up on slopes or uneven ground, constantly ensuring maximum drive of all four wheels.

The synchronised gearbox consists of 4 ranges and 4 speeds for a total of 16 gears both in forward motion and in reverse, with synchronised reverser.

The logical speed sequence (from 0,7 to 40 km/h) makes it possible to always select the right gear for the intended use, allowing:

fuel savings
less stress on the mechanical components
a better operating quality.

The hydraulically controlled multidisc in oil bath clutch is much softer and more efficient than traditional dry clutches, always ensuring precise control of the tractor by the operator.

Using this type of advanced hydraulic clutch, inserted inside the transmission, results in a series of concrete advantages:

longer life
no maintenance
maximum manoeuvrability thanks to the more compact dimensions of the tractor.

New workstation.

The driver’s seat was designed to combine ergonomics and comfort with close attention to the layout of the controls according to the logic applied to field tractors.

The new workstation features all the directional control valves and lift operating levers positioned on the right side, (also in the version with controlled draft), and the right bumper now has an electro-hydraulic control for PTO engagement.

Accordingly, all the controls for hydraulics can be easily used by the operator with his/her right hand, while the left hand stays firmly on the steering wheel.

Also, from the seat the operator has a complete and unobstructed view of the rear tool as well as the machine and wheel track.

Maximum protection!

‘Compact Pro’ cab | Fighter range

Ultra-low profile and Cat. 4 approved

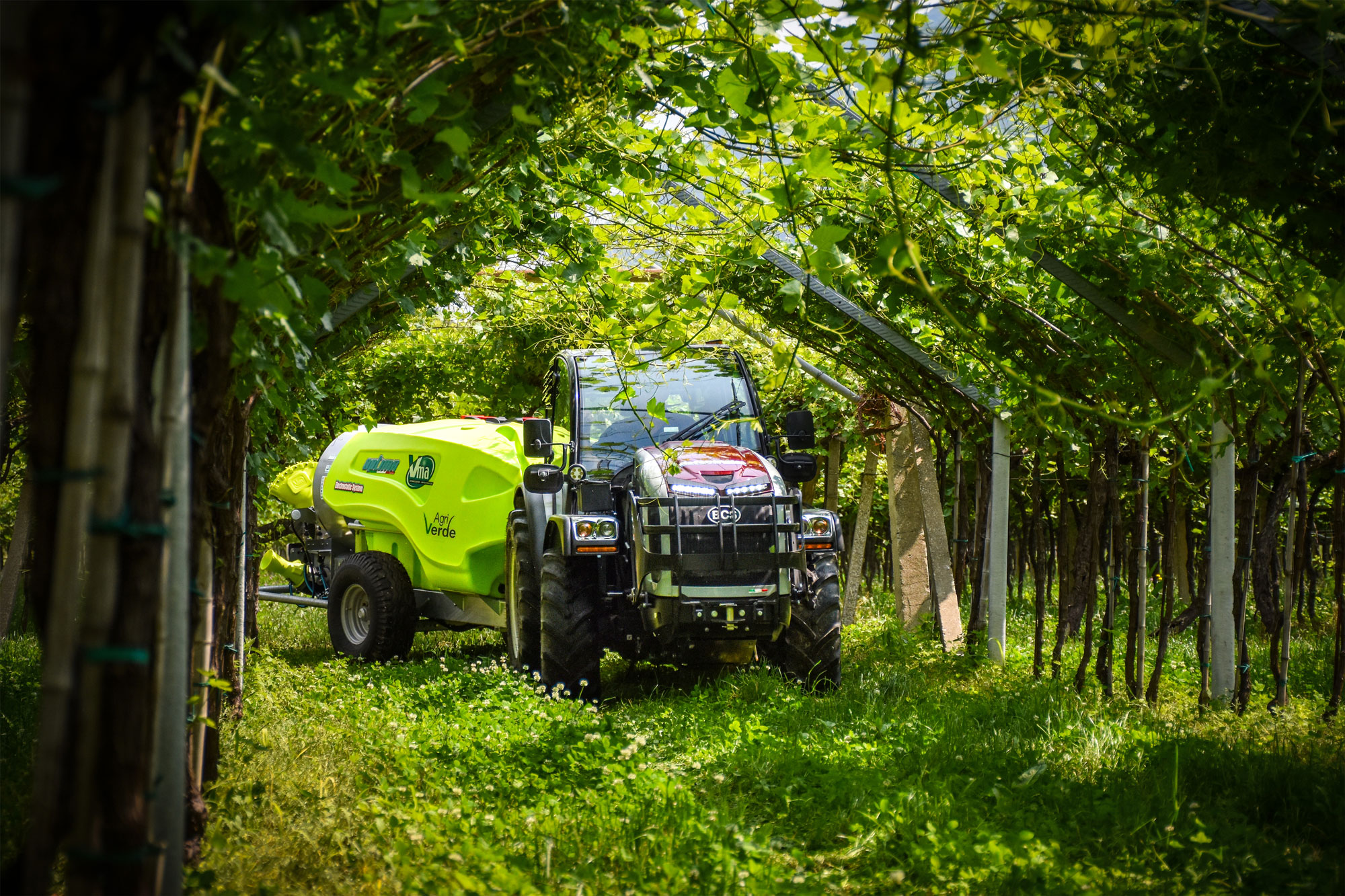

The low chassis with height off the ground of only 170 cm, the lowest driving position in its category, makes use under the foliage, in pergola vineyards, canopy plantations and greenhouses extremely easy.

Pressurised and homologated in Category 4, isolates the operator from harmful inhalations during treatments with phytosanitary agents, making the work environment healthy and safe.

Find out more

Functional design.

Fighter K90 features an aggressive design yet elegant and functional, characterised by a muscular line which nevertheless provides the driver optimal visibility.

In addition to the four optical units on the front bumpers, two LED headlights above the bonnet grille increase the lit area to facilitate work at night or in poorly lit environments.
